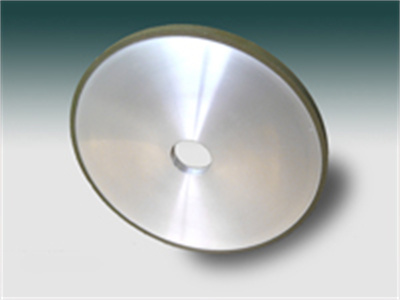

1A1

圖片關鍵詞

D	T	H	X
25	4,6,8,10,12,16,20		3
30	10,12,16,20		3
40	4,6,8,10,12,20		3
50	4,6,8,10,12,16,20		3
60	6,8,10,16,20		3,4,5
75	3,4,6,8,10		3,4,5
80	5,6,8,10,12,16,20		3,4,5
100	3,4,5,6,8,10,12,16,20		3,4,5,6
125	3,4,5,6,8,10,12,15,16,20		3,4,5,6
150	3,4,5,6,8,10,12,15,16,20		3,4,5,6,8,10
175	5,8,10,12,16,20		3,4,5,6,8,10
200	5,6,8,10,12,15,16,20		3,4,5,6,8,10
250	5,8,10,12,15,16,20,25,40,50,60		3,4,5,6,8,10,15
300	8,10,12,16,20,25,32,40,50,60		3,4,5,6,8,10,15
350	12,15,16,20,25,32,40,50,60		3,4,5,6,8,10,15
400	10,12,15,16,20,25,32,40,50,60		3,4,5,6,8,10,15
450	12,15,20,40,50,60		3,4,5,6,8,10,15
500	12,15,20,40,50,60		3,4,5,6,8,10,15

14A1

圖片關鍵詞

D	T	H	J	X	U
75	6		50	3	1, 2
100	6, 8		70	3	3
125	6, 8,10,12		100	3	3
150	10, 12		120	3	3
175	12, 15,		140	3	1, 3, 6
200	12, 15, 20		160	3	3, 5, 6
250	12, 15, 20		200	6	6, 10
300	15, 20		250	6	6, 10, 16
350	15, 20		300	6	6, 10, 16
400	20		350	6	6, 10, 16
500	20		400	6	10, 16
600	20		500	6	10, 16

9A3

圖片關鍵詞

9A3 Used for the cylindrical grinding, tool and cutters grinding, centerless grinding.

圖片關鍵詞

D	T	H	E	W	X
125	12		8	5	2
150	16		12	5	2
175	16		10	6	3
175	16		12	5	2
175	16		12	8	2
175	16		10	8, 10	3
230	12		8	10	2

6A2T

圖片關鍵詞

6A2T Diamond & CBN double grinding disc with the features of high accuracy, high efficiency and excellent durability. Used in the fields of compressor, bearing, magnetic materials and various ceramics.

圖片關鍵詞

D	T	H	E	K	W	X
305	50	80			50	3.5
305	50	80			10	3.5
305	50	80			100	3.0
305	50	80			75	3.0
450	63	160			100	3.0

6A2

圖片關鍵詞

6A2 Suitable for the high-precision end/surface and cutter’s grinding.

圖片關鍵詞

D	T	H	E	W	X
50	13		6	3, 5, 6	1.5
75	20		10	3, 5, 6, 10	3
100	20		10	6, 10, 12	3
125	20		10	6,10,12,15, 20	1.5
125	20		10	6,10,12,15,20, 25	3
150	20		12	5, 6,10,12,15, 20, 25, 30	3
175	20		12	5, 6,10, 15, 20, 25	1.5
175	20		12	5, 6,10, 15, 20, 25	3
200	20		12	10, 15, 20, 25	3

1V1

圖片關鍵詞

1V1　Suitable for the precision and deep grooving

圖片關鍵詞

D	T	H	X	V
150	1.6			15°
150	3			20°
150	6			10°

Any other size available upon request.

1F1

圖片關鍵詞

1F1 Suitable for the grinding of arc with the curvature 0.01mm.

圖片關鍵詞

D	T/R	H	X
60	4/2		4
75	4.2/2.1		5
80	6/3		6
100	3/1.5, 6/3, 8/4, 10/5		3, 5, 6, 7
125	3/1.5, 6/3		3, 6

Any other size available upon request.

1A1R

圖片關鍵詞

1A1R Suitable for the cutting of materials, such as tungsten carbide, Quartz, Glass, LED,etc.

圖片關鍵詞

D	T /E				X
D	0.8/0.6	1.0/0.6	1.2/0.8	1.4/1.0	X
60	√				5
80	√				5
100	√	√	√	√	5
150	√	√	√	√	6
200		√	√	√	6, 8

Any other size available upon request.

4A2

圖片關鍵詞

4A2

It is widely used for grinding cemented carbide tools. It can provide different grinding wheels, single grinding particles, mixed grinding particles, mixed grinding particles, single grinding layer, double grinding layer and three grinding layers.

圖片關鍵詞

D	T	H	J	W	X
150	10		57	3	1.5
150	10		57	5	1.5
150	10		57	6	1.5
150	10		57	6	3
150	10		57	10	1.5
150	10		57	10	3
200	10		100	6	1.5
200	10		100	6	3
250	13		125	6	1.5
250	13		125	6	3

6A9

鄭州華達實業有限公司

6A9 Suitable for the high precision grinding of all kinds of carbide tools and cutters

鄭州華達實業有限公司

D	T	H	E	K	U	X
75	25		10		6， 10	3
100	30		10		6, 10	3
125	35		10		6, 10	3
150	35		13		6, 10	3
200	35		13		6, 10	3
250	50		13		6，10	3

Any other size available upon request

3A1

鄭州華達實業有限公司

3A1 For high precision cut-in grinding, such as PG grinding, Jig grinding, micro drill grinding, etc. the thinest thickness can reach to 0.4mm within the run-out 0.003mm.

鄭州華達實業有限公司

Any other size available upon request
